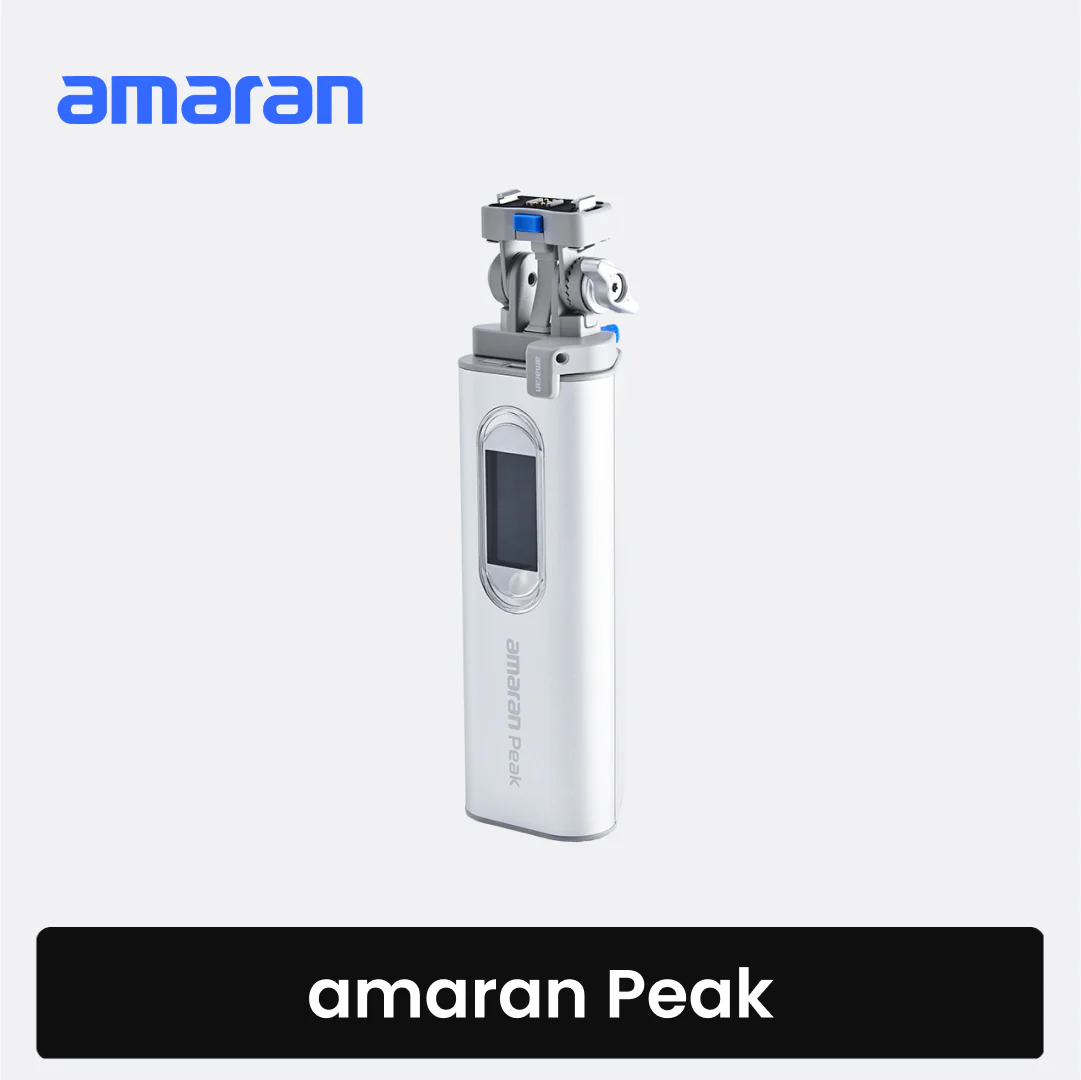

amaran Peak Battery Grip Overview

The amaran Peak is a 86.4Wh battery system for on-the-go creators — delivering up to 170W of output to power your entire setup. With cable-free operation via the Ace E-Lock, 140W USB-C PD fast charging, and versatile mounting options, it’s built to keep you powered – anywhere, anytime.

CABLE-FREE POWER WITH ACE E-LOCK

Power your lights without cables. The amaran Peak delivers direct power to amaran Ace E-Lock compatible lights – like the amaran Pano 60c & 120c – with the included E-Lock Expansion Module. Perfect for handheld or mounted setups, or clamped to your gear.

ONE SYSTEM FOR All YOUR GEAR

Ditch bulky NP-F and V-Mount setups. With an 86.4Wh battery capacity that delivers up to 170W of output and 3 USB ports, the amaran Peak powers lights, cameras, and more – all from one compact battery.

MORE WAYS TO POWE AND MOUNT YOUR LIGHTS

Go beyond the Ace E-Lock. With the optional E-Lock Adapter and USB-C to DC Cable, the amaran Peak powers lights like the amaran COB 60d/x S and lets you mount them directly – handheld or on a stand.

MOUNT ANYWHERE. CREATE EVERYWHERE.

With built-in 3/8-16in and 1/4-20in mounting points and an optional Light Stand Clamp, the amaran Peak mounts directly onto light stands, tripods, or just about anywhere you shoot.

REAL-TIME SMART DISPLAY

Stay informed with a full-color smart display showing battery status, power flow, and alerts – so you can charge or create with confidence, wherever you are.

#amaranPeak #BatterySystem #PortablePower #LEDLighting #CameraBattery #USBCPD #TravelPower #OnLocation #ContentCreator #FilmmakingGear

FAST-CHARGING

Get back to full power in 1 hour with USB-C PD fast charging up to 140W.
AIRLINE SAFE. TRAVEL READY.

Take powerful, pro-grade battery performance on any flight – no paperwork required.

IP54 RATED WEATHER RESISTANCE

IP54-rated for dust and splash resistance – ready for any shoot, rain or shine.

Output Specifications Table

Port Configuration	Output Details
USB-C1	5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-C2	5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A (140W Max)
USB-A	5V⎓3A, 9V⎓3A, 12V⎓2.5A (30W Max)
USB-C1 + USB-C2	100W + 65W (165W total)
USB-C1 + USB-A	140W + 30W (170W total)
USB-C2 + USB-A	140W + 30W (170W total)
USB-C1 + USB-C2 + USB-A	65W + 65W + 18W (148W total)

Input Specifications Table

Port	Input Details
USB-C1	5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A
USB-C2	5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 28V⎓5A

Technical Specifications Table

Category	Details
Battery Capacity (Max)	86.4 Wh / 24,000 mAh
Battery Capacity (Min)	82.08 Wh / 22,800 mAh
Rated Capacity	13,200 mAh (5V⎓3A)
Ports	2× USB-C, 1× USB-A, 1× amaran Ace E-Lock
Max Total Output	170W
USB-C Max Power Input	140W
Supported Protocols	PD, QC
Charge Time (65W)	75 minutes
Charge Time (140W)	60 minutes
Operating Temperature	-10°C to 40°C / 14°F to 104°F
Storage Temperature	-20°C to 80°C / -4°F to 176°F
Screen Type	TFT
Control Method	Button
Cooling Method	Passive Cooling
Noise Level	0 dBA
Cycle Life	800+ cycles (80% capacity)
Conversion Efficiency	≥78%

Dimensions & Measurements Table

Item	Dimensions
amaran Peak Only	17.6 × 6.4 × 6.1 cm (6.93" × 2.52" × 2.40")
Ace E-Lock Module	6.92 × 6.10 × 5.02 cm (2.72" × 2.40" × 1.98")
USB-C Cable Length	50 cm (19.69")

Weight Specifications Table

Item	Weight
amaran Peak Only	791.0 g / 1.74 lbs
Ace E-Lock Module	243.0 g / 0.54 lbs

What's in the Box

1x amaran Peak
1x amaran Ace E-Lock Expansion Module

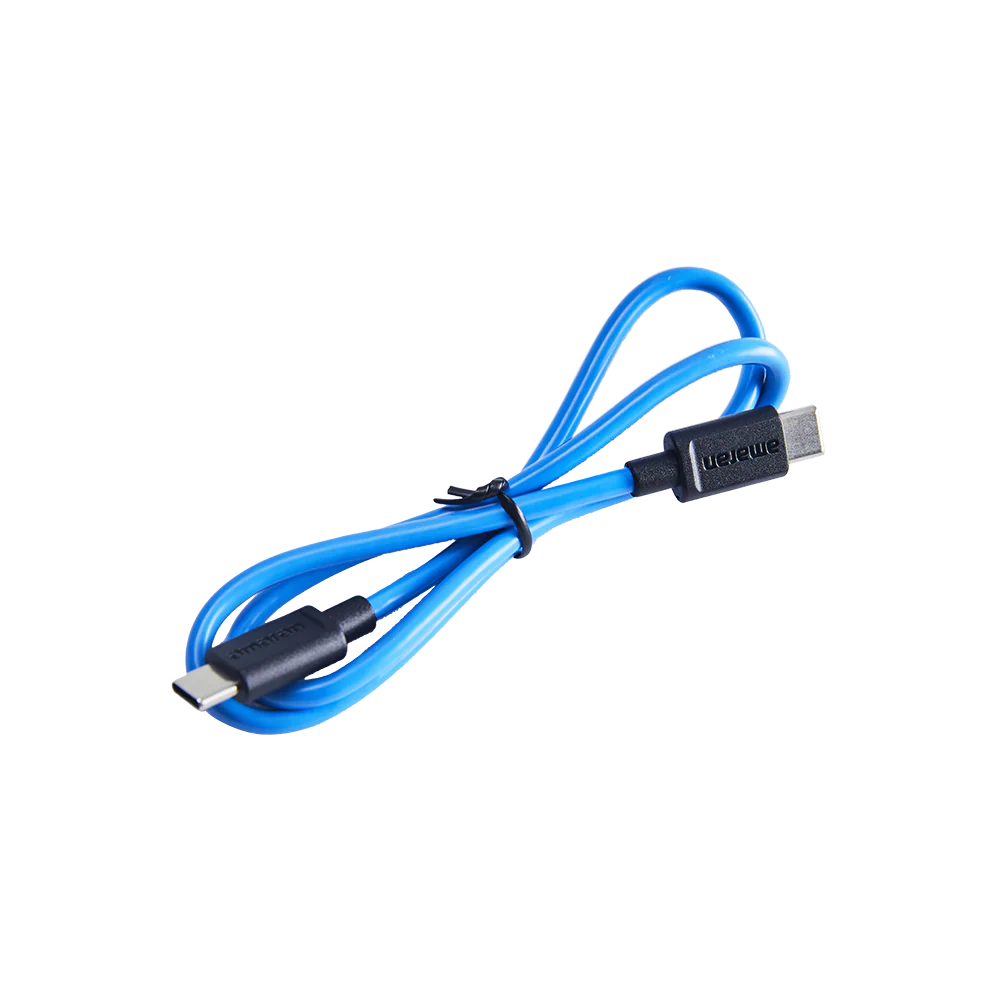

1x amaran USB-C Charging Cable (50cm)
1x 1/4-20in to 3/8-16in Screw Adapter
1x Drawstring Pouch

Batteries / Chargers

Aputure 2-Bay Battery Power Station For Aputure Nova P300C, 200D and more (V-Mount)

GoPro Enduro Rechargeable Battery Cold Weather Battery Hero 12 / Hero 11 / Hero 10 / Hero 9

GoPro Dual Battery Charger and 2 x Enduro Battery for HERO 9 - HERO 12

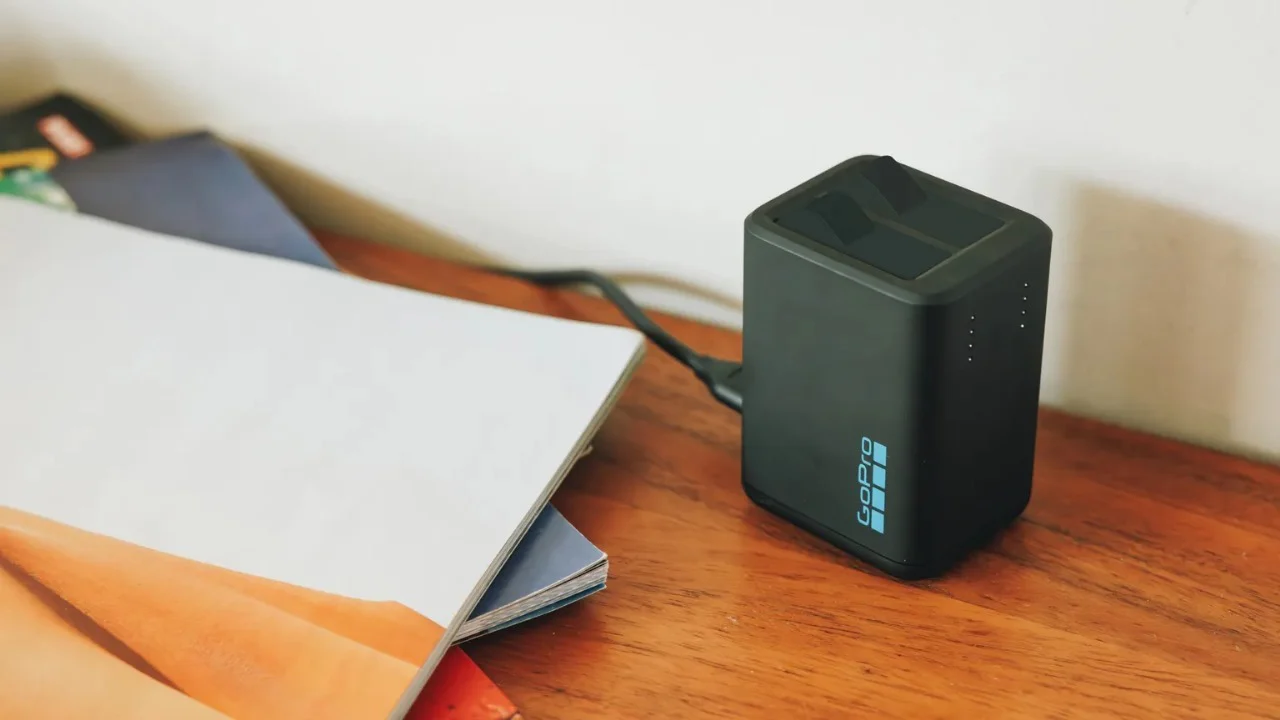

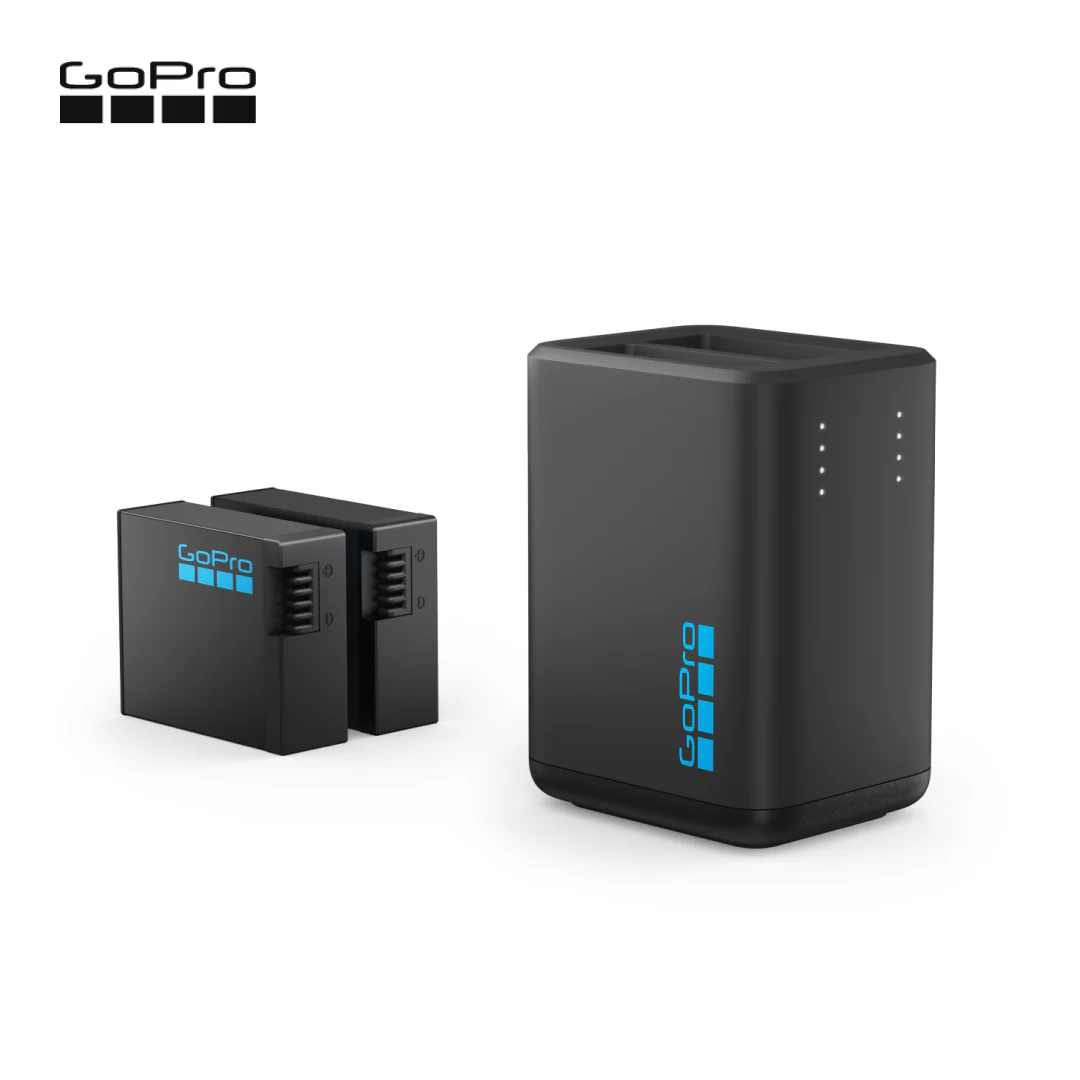

GoPro Dual Battery Charger for HERO 13 Black + Enduro Batteries
